Cartridge adapters & fixtures
Accommodate different syringe barrels and support your part with application-specific adapters and fixtures.
Meet Exacta Duo
Dispense.
Cure.
Repeat.
Adhesive dispensing and UV curing. Two independent operator stations. One modular platform built to fit your process.
Two independent stationsRun the same recipe or different recipes.
No compressed air requiredElectrically driven adhesive dispensing.
Adaptable by designCartridge adapters, curing cups, fixtures, and workflows.
At the workbench
Use dispensing,
curing, or both.
Each station can run the same recipe or a different one, so two operators can work on separate assembly tasks at the same time.
From recipe to assembly.
-
01 / SET UP
Select your recipe.
Choose the saved recipe for the job and bring your process settings to the station.
-
02 / DISPENSE
Press the pedal.
Trigger the programmed dispense with the foot pedal, keeping your hands free to position the part and apply adhesive.
-
03 / CURE
Position and cure.
Place the bond area in the curing cup. Start the configured UV exposure using the part sensor or foot switch, according to the selected workflow.
-
04 / REPEAT!
On to the next part.
Keep the assembly moving. Each operator works through the next part using their station’s selected recipe.
Process control
Set the process.
Keep it within reach.
- Saved recipes
- Bring dispensing and curing settings together in a recipe, ready to recall for the next run.
- Calibration & lot history
- Save radiometer readings for estimated irradiance at different power settings. Review recorded run information in the lot history.
- Training at the station
- Assign a training video to a recipe so operators can review the procedure where the work happens.
Multiple dispensing modes
Fixed
Set the dispense time and run. Use the same programmed duration for each cycle.
Adjustable
Set a starting dispense time, then adjust it on the fly as your process requires.
Calibrated interpolation
Calibrate an adhesive bottle and save its profile in the library. Exacta Duo uses that profile to adjust dispensing during the run, helping keep deposits consistent from part to part.
Manual
Dispense and cure on demand, with adjustments as you work. For the moments when R&D can’t wait.
Customization & application support
Your parts. Your adhesive.
A system that fits.
Your assembly process starts with a specific part, adhesive, and way of working. We work with you to adapt Exacta Duo around those requirements.
Custom curing cups
Talk with us about cup geometry, part positioning, and access to the bond area. The curing setup should suit the part your operators actually handle.
Recipes & workflows
Use saved recipes, adjustable dispensing, and manual operation. Work with us on curing triggers, operator guidance, and workflow changes for your application.
Bring your process
to the bench.
Walk through dispensing, curing, and the operator interface with your engineering team. A demonstration gives us a practical starting point for discussing your parts, fixturing, and workflow requirements.
Arrange a demonstrationSystem overview
The system, at a glance.

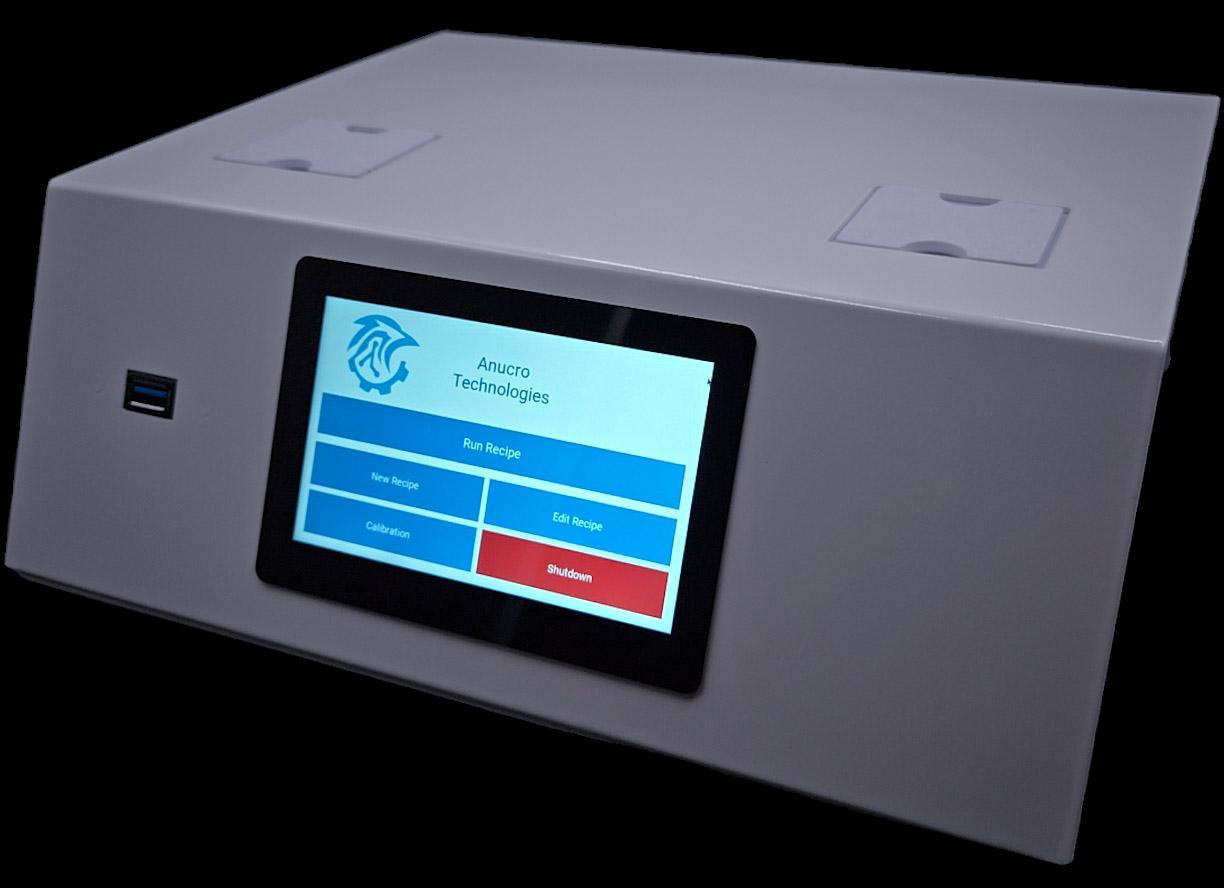

One touchscreen controller connects two dispensing stands, curing cups, and foot switches. Configure each station for its assembly task, with the flexibility to adapt the hardware and workflow as your application develops.
| Stations | Two independent operator stations |
|---|---|
| Dispensing | Electrically driven, positive-displacement dispensing with position feedback |
| Cartridges | Standard 10 mL and 30 mL setups; custom adapters and saved cartridge profiles for other barrels |
| UV curing | 365 nm and 405 nm cup configurations; adjustable exposure time and LED power |
| Operation | Fixed, Adjustable, Calibrated Interpolation, and Manual modes; sensor- or pedal-triggered curing |
| Interface | Built-in touchscreen with external display mirroring |
| Records & guidance | Saved calibration data, lot history, and recipe-linked training videos |
| Utilities | Electrical power; no compressed-air supply required |
Cartridge fit, curing cup configuration, and process settings are selected for the application. Talk with us about your barrel, part geometry, and adhesive.
Dispensing and curing.
One shared interface.
Set dispense duration, speed, hold, and anti-drip retraction alongside UV exposure settings. Keep the recipe and its training video at the workbench, while each operator works from an independent station.
Take a closer look
Share it with your team.
Download the Exacta Duo brochure for a concise overview of the equipment, workflow, and controls. Keep a copy for your next process discussion.
Download Brochure PDF · 2.1 MB · No email requiredSee it in action
Prototype demonstration. The current Exacta Duo hardware and touchscreen are shown in the photos above. Contact us for a demonstration of the current system.
Let’s talk about your application
What are you
assembling?
Tell us about your part, adhesive, and assembly process. We can walk through a demonstration and discuss cartridge adapters, curing cups, fixtures, and workflow requirements.
Prefer to start with an email?admin@anucro.com
For teams developing and assembling medical devices, electronics, and other small components using light-curable adhesives.
